Optical Multitest Platform
Build your own Optical Test System
Our Optical Multitest Platform is the ideal tool for measuring and evaluating a wide range of optical devices. A variety of measurement modules are available.

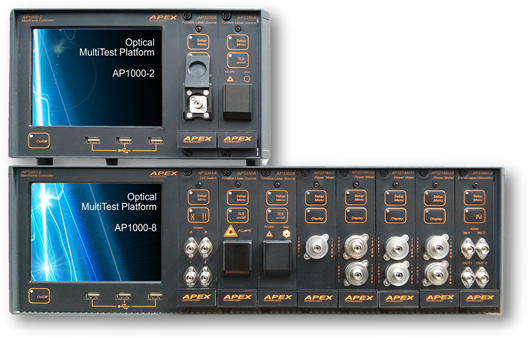

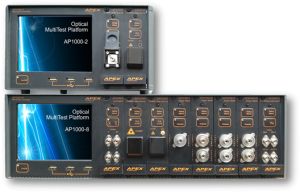

AP1000 Mainframe Controllers and Extension
The AP1000 Series Optical MultiTest Platform offers three mainframe controllers and one extension mainframe, accepting 2, 5, 8, and 12 optical test plug-in modules, respectively.
The plug-in modules are automatically recognized upon connection within a mainframe.
Users can control the equipment directly with the 5.7 inch touchscreen, with a mouse and a keyboard (three USB ports are available on the front panel), or remotely through Ethernet or GPIB. An internal memory is available and measurements, grids and setups can be saved/loaded in .txt format.
Optionally, a trigger synchronized with the Optical Tunable Laser Sources modules can be added.
A Large Variety of Optical Modules and Configurations
Several configurations are available for each type of optical test modules listed below, along with key features and specifications :DFB Laser Modules
Key Features:
- Selected wavelength according to ITU-T Grid, C-band, L-band and O-band available
- High optical output power up to 20mW for C-band & L-band, up to 16 mW for O-band
- High side mode suppression ratio (SMSR)
- 50GHz spacing available
- Narrow linewidth (down to 1 MHz) available
Optical Power Meters Modules
Key Features:
InGaAs photo diode
Single or dual inputs
Maximum input power up to +33 dBm available
Wavelength measurement range from 800 to 1700 nm
Active power control to keep output power constant
Compatible with single-mode and multimode fiber
Different style of interchangeable connectors
Optical Amplifiers (EDFA) Modules
Key Features:
- Wavelength range: 1528 to 1563 nm or 1568 to 1612 nm
- Three series of EDFA modules : Booster / Line / Pre-amplifier
- Gain flattened version available
- Input power down to -40 dBm
- Saturated output power up to 22 dBm
- Large input power range
- Low noise figure
Optical Variable Attenuator Modules
Key Features:
Single or Double module
Attenuation range: 30dB
Minimum insertion loss: < 1dB
Attenuation step: 0.1 dB
Active power control to keep output power constant
Optical Tunable Filter Modules
Key Features:
Excellent MEMS durability, thermal stability, and repeatability
Superior optical performance
Gaussian-shaped pass band
Pass band optimized for 50 GHz channel spacing
Customized pass bands and tuning ranges available
Optical Switch Modules
Key Features:
Wide operating wavelength range
Low insertion loss
Low polarization dependence loss
Fast Switch speed
Excellent repeatability
Easy to integrate
Fiber-coupled Polarimeter Module
Key Features:
Four Stockes parameters measurements
Instantaneous state of polarization (SOP)
Degree of polarization of input light (DOP)
Three different displaying modes: Jones graph, Poincaré sphere and Stockes parameters oscilloscope
Extinction ratio measurements of polarizers or alignement of PM fiber
Very low PER measurement
